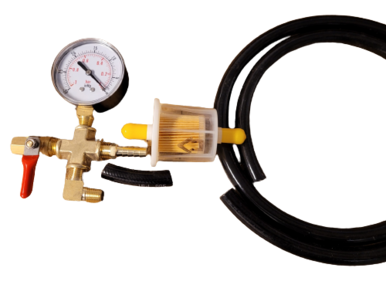

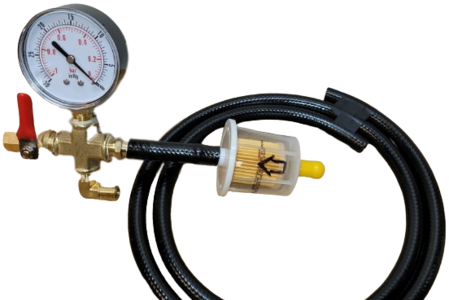

Brass Parts details

included with pump above

Brass Manifold and Connectors

1/4" Brass Valve w/SS Ball
30"Hg to 0  2 1/2" diameter Vacuum Gauge
Particulate Filter,  (very important for long pump life,

can be reverse blown out or replaced)​

4'  of  3/8" ID Vacuum Hose (pump to headstock)

Note: 90% assembled

​

Pump as Described w/shipping
Select Lathe Thread 4"OD Chuck
Ships free w/Pump Order

Notice:​

Pump orders received will be shipped week of May 6th.  Click ABOUT tab above for more details.


Click on add to cart, it will open in a new page, PayPal is my shopping cart, you can pay with PayPal or any CC.  Return to continue shopping  or you can make payment.


Make a complete system,add a vacuum chuck (below), ships free if ordered with pump.  And/or, add a set of sealed bearings/instructions (Bearings and Parts tab)


Canadian turners - Additional shipping charges (first $25 paid with pump) please email.  FrugalVacuumChuck@gmail.com

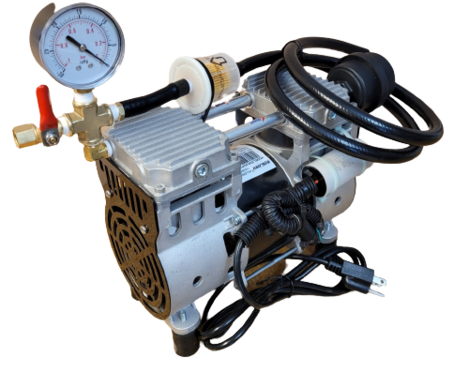

The New Frugal

Oil-FreeVacuum Pump

Repeating (no smog),  Dry Cup Composite Piston and Sealed Bearings
Quiet (55 Db),  Medical Laboratory  Grade (rated continuous duty)
-27"Hg (90% atmospheric pressure), 3.5CFM, 110V AC, 3.9 Amp
Includes Rubber Motor Mounts and Muffler
15 Month Manufacturer Warranty + Extended Bob (Frugal Guarantee)

Pump/Parts, as shown.......$270 +$25 packing/shipping US

                             (more details below)

​

Notice:  After adding pump to shopping cart, return to this page to add Vacuum Cup.

Contact me if you want optional size cup.

FrugalVacuumChuck.com


1)    4” Dia PVC Vacuum Chuck
with foam seal, specify 1” or 1 1/4” x 8 TPI threads.
$60 Free shipping w/pump.

(2.7” and 5” Dia. also available)
The secret to my system is a sealed bearing imbedded in the cup with a polyethylene extension tube that carries vacuum through the headstock. Eliminates vacuum leaks at threads and at outboard adapter, also it fits 99% of every lathe made.

Note: Compatible with all outboard adapters, do not insert the headstock

extension tube.  Retain tube for use if traveling to a club demo, etc.


2) Vacuum pump 3/8” ID hose connected to 3/8” OD polyethylene

tube exiting from head-stock.  No clamps needed-snug fit.


3) Vacuum cup with 150# (approx.) holding on square edge bowl.
Plus bowl can be reversed for sanding and/or refinishing.
Try that with your Cole-Jaws or jam chucks.

​
